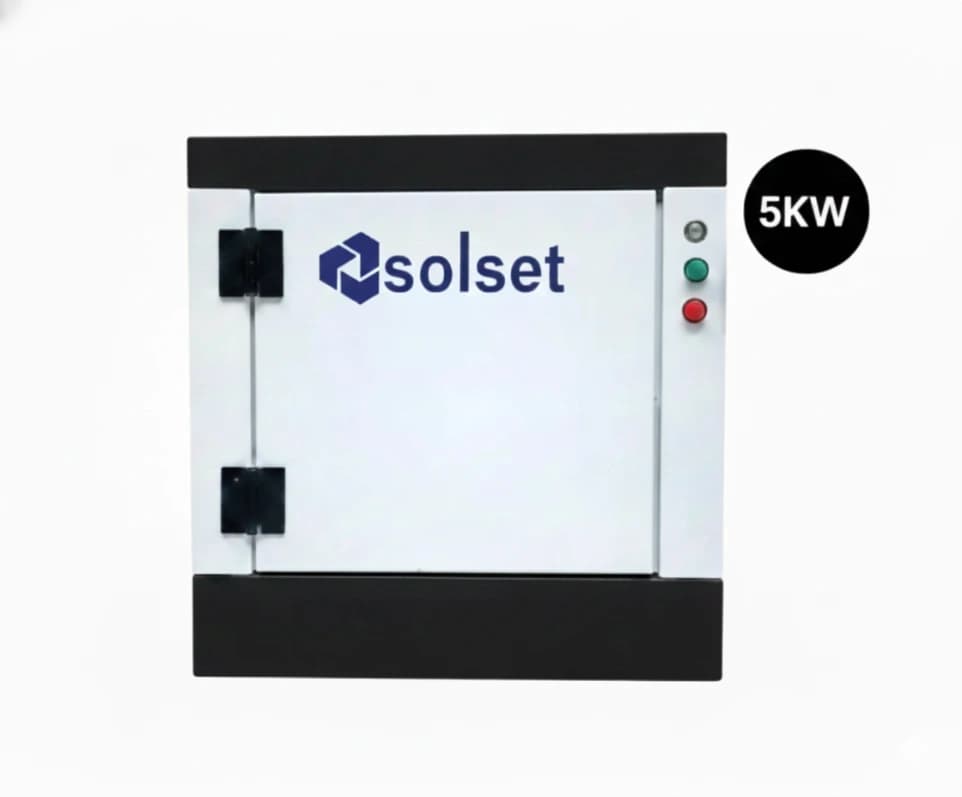

Solset Power Station 5 kw, PIB50100

Continuous Power Output: 5000W (5000VA capacity).
DC Input Range: 48V - 60V DC (supports single battery).
AC Output: 220V AC ± 3% / 50Hz.
Waveform: Pure Sine Wave (suitable for sensitive electronics).
Efficiency: >90%
Solar Optimization: iSOT (Intelligent Solar Optimization Technique) for power savings (up to 4 units/day*).
Max Supported Panel Power: 3000 Wp (Maximize capacity utilization).
User Settable Modes: 3 Saving Modes (Solar, Solar+Grid, Grid+Solar).
Charging Capability: Powerful charging even at low voltage (90V).
Safety & Protection: Short-circuit, Over temperature, Overload protection, and No load shutdown.
Display: New LCD display to view daily solar generation data.
Certification: MPPT based, BIS certified (as per IS/IEC standards).
Warranty: 12 Months.

Price

₹ 99,900.00 (Tax included)

Terms and Conditions

Other Buying Options

Category	Specification	Details
Input Specifications	DC Input Voltage	48V – 60V (based on solar & battery setup)
Input Specifications	Maximum DC Input Current	Up to 100A (varies with input voltage & load)
Output Specifications	AC Output Voltage	220V AC ± 3%
	Output Frequency	50Hz ± 0.5Hz
	Waveform	Pure Sine Wave (suitable for sensitive electronics)
	Continuous Power Output	5000W
	Peak Power Capacity	6000W (for short bursts); Efficiency ≥ 90%
Technical Specifications	Capacity (VA)	5000 VA
	Operating Voltage Range	90V – 290V
	Supported Panel Power	3000 Wp; Supports single battery
Warranty	Duration & Standards	12 Month Warranty MPPT-based solar inverter BIS certified as per IS/IEC standards (mandatory for all solar inverters)
Operating Modes	Mode Options	Solar Mode, Solar+Grid Mode, Grid+Solar Mode
	Display	LCD display showing daily solar generation & system data
	Power Savings	Save up to 4 units/day* using Intelligent Solar Optimization Technique (iSOT)
Capacity Utilization	Max Usage	Connect panels equivalent to inverter VA rating. Powerful charging even at 90V — ideal for low voltage areas.
Output Quality	Waveform	Pure sine wave output for sensitive appliances & noiseless operation.
Safety & Protection	Protection Features	Short-circuit protection, Over-temperature protection, Overload protection, Deep discharge protection, No-load shutdown.
