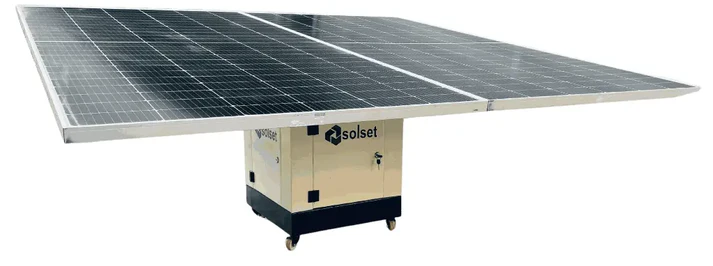

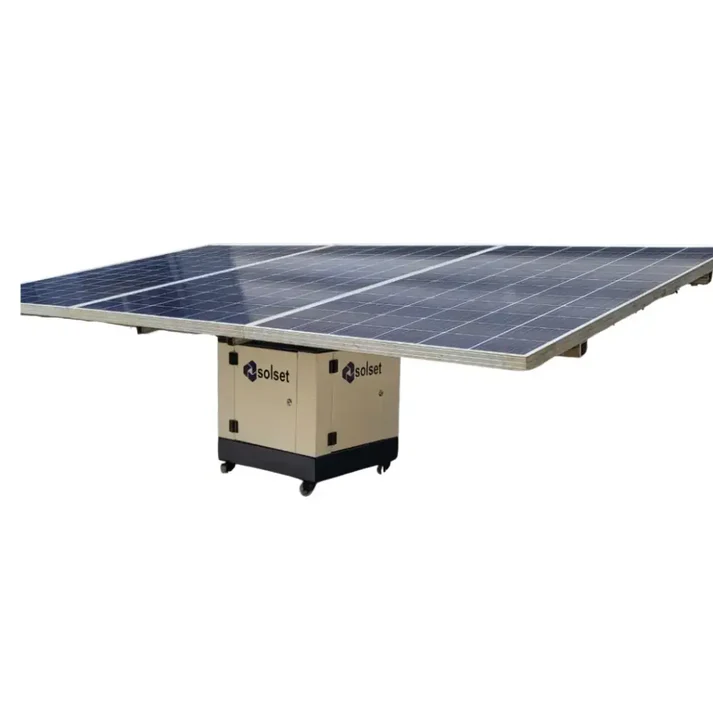

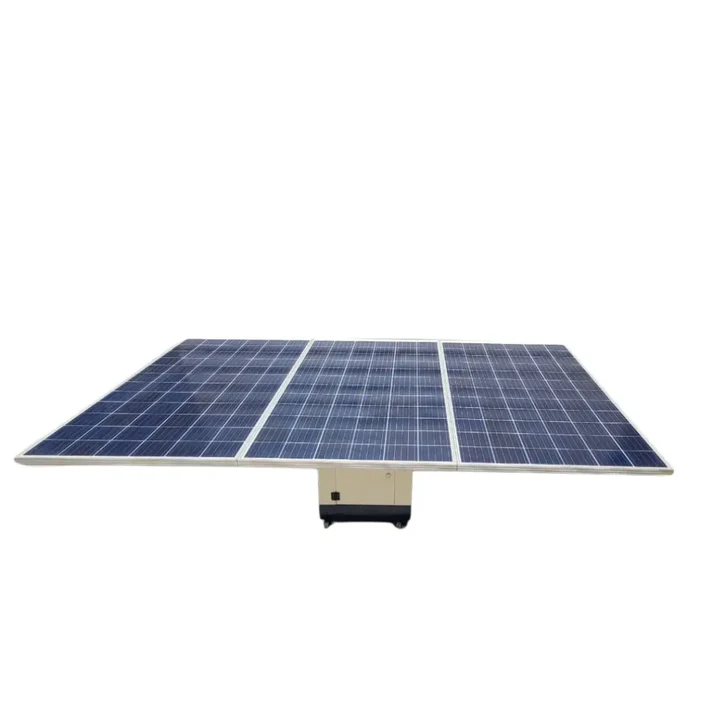

Solset Solar Inverter with Module 1KW/KVA | PIB10300
(0 review)
1 kW Solar Power System
with inverter and solar module
Clean & Renewable Energy Solution
High-Efficiency Solar Panel
for maximum power generation
Integrated Solar Inverter
with smart energy management
Battery Charging Support
via solar energy
Automatic Power Switching
(solar / battery / grid)
Low Maintenance & Long Lifespan
Eco-Friendly & Cost-Saving Solution
Suitable for Homes, Shops & Offices
Compact & Mobile Design
1-Year Warranty
Add to cart
Buy now
Add to wishlist
Price
₹
49,000.00
₹
49,000.00
(Tax included)
Terms and Conditions
Contact Us
Other Buying Options
Book Now Pay Later
Buy On Amazon
Buy On Flipkart
Category
Specification
Details
Input Specifications
DC Input Voltage
24V – 48V (based on solar & battery setup)
Maximum DC Input Current
Up to 50A (varies with input voltage & load)
Output Specifications
AC Output Voltage
220V AC ± 3%
Output Frequency
50Hz ± 0.5Hz
Waveform
Pure Sine Wave (suitable for sensitive electronics)
Continuous Power Output
1000W
Peak Power Capacity
1200W (for short bursts); Efficiency ≥ 90%
Technical Specifications
Capacity (VA)
1000 VA
Operating Voltage Range
90V – 290V
Supported Panel Power
1000 Wp; Supports single battery
Warranty
Duration & Standards
12 Month Warranty
MPPT-based solar inverter
BIS certified as per IS/IEC standards (mandatory for all solar inverters)
Operating Modes
Mode Options
Solar Mode, Solar+Grid Mode, Grid+Solar Mode
Display
LCD display showing daily solar generation & system data
Power Savings
Save up to 4 units/day* using Intelligent Solar Optimization Technique (iSOT)
Capacity Utilization
Max Usage
Connect panels equivalent to inverter VA rating.
Powerful charging even at 90V — ideal for low voltage areas.
Output Quality
Waveform
Pure sine wave output for sensitive appliances & noiseless operation.
Safety & Protection
Protection Features
Short-circuit protection,
Over-temperature protection,
Overload protection,
Deep discharge protection,
No-load shutdown.
Category
Specification
Details
Input Specifications
DC Input Voltage
24V – 48V (based on solar & battery setup)
Maximum DC Input Current
Up to 50A (varies with input voltage & load)
Output Specifications
AC Output Voltage
220V AC ± 3%
Output Frequency
50Hz ± 0.5Hz
Waveform
Pure Sine Wave (suitable for sensitive electronics)
Continuous Power Output
1000W
Peak Power Capacity
1200W (for short bursts); Efficiency ≥ 90%
Technical Specifications
Capacity (VA)
1000 VA
Operating Voltage Range
90V – 290V
Supported Panel Power
1000 Wp; Supports single battery
Warranty
Duration & Standards
12 Month Warranty
MPPT-based solar inverter
BIS certified as per IS/IEC standards (mandatory for all solar inverters)
Operating Modes
Mode Options
Solar Mode, Solar+Grid Mode, Grid+Solar Mode
Display
LCD display showing daily solar generation & system data
Power Savings
Save up to 4 units/day* using Intelligent Solar Optimization Technique (iSOT)
Capacity Utilization
Max Usage
Connect panels equivalent to inverter VA rating.
Powerful charging even at 90V — ideal for low voltage areas.
Output Quality
Waveform
Pure sine wave output for sensitive appliances & noiseless operation.
Safety & Protection
Protection Features
Short-circuit protection,
Over-temperature protection,
Overload protection,
Deep discharge protection,
No-load shutdown.
