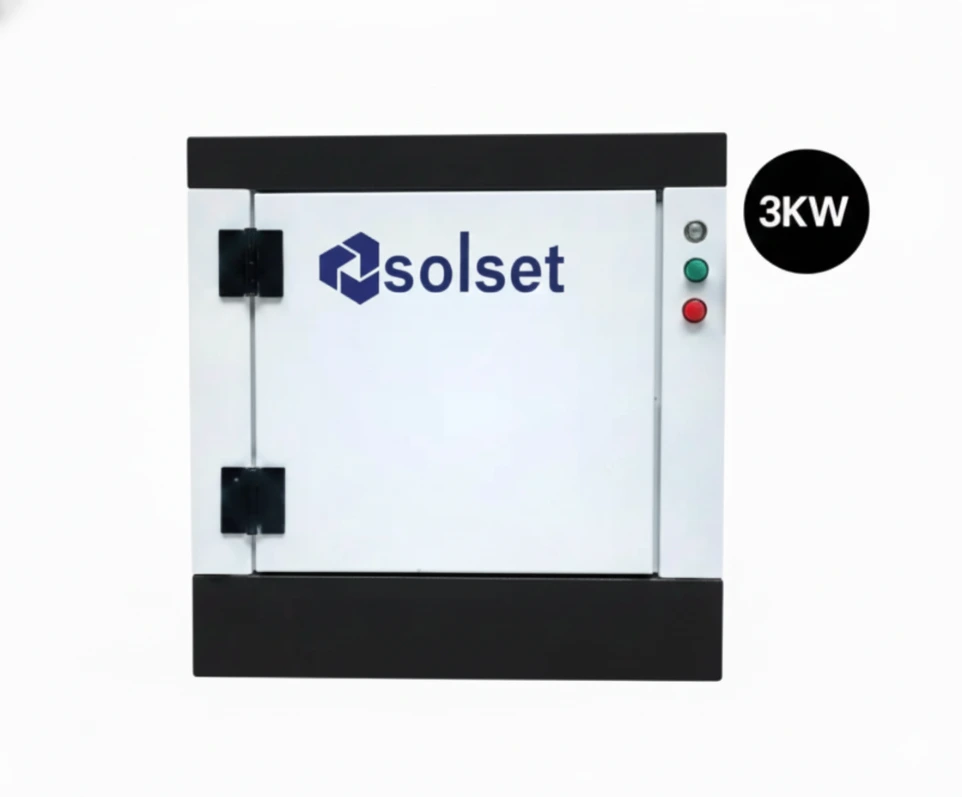

Solset Power Station 3KW, PIB 3060

Solset Power Station 3KW, PIB 3060

Key Feature:
  • Continuous Power Output: 3000W (3000VA capacity).
  • Solar Charge Technology: Advanced MPPT (Maximum Power Point Tracking).
  • Solar Optimization: iSOT (Intelligent Solar Optimization Technique) for power savings (up to 4 units/day*).
  • Max Supported Panels: 3000 Wp (Maximize capacity utilization).
  • AC Output: Pure Sine Wave at 220V AC ± 3% / 50Hz.
  • DC Input Voltage: 24V DC (supports single battery).
  • Wide Operating Voltage: 90V-290V (Powerful charging at low 90V).
  • Operating Modes: 3 User Settable Modes (Solar, Solar+Grid, Grid+Solar).
  • Safety Protections: Short-circuit, Over temperature, Overload, and No load shutdown.
  • Display: New LCD display for daily solar generation data.
  • Certification & Warranty: BIS certified (IS/IEC standards) with a 12-Month Warranty.

 ​ Power Stations
₹ 70,000.00 ₹ 70,000.00 (Tax included)

Add to cart
Buy now
Terms and Conditions

Other Buying Options

Book Now Pay Later

Buy On Amazon

Buy On Flipkart

Category Specification Details
Power Output Continuous Power Output 3000W (3000VA capacity)
Solar Technology Solar Charge Technology Advanced MPPT (Maximum Power Point Tracking)
Solar Optimization iSOT (Intelligent Solar Optimization Technique) — saves up to 4 units/day*
Max Supported Solar Panels 3000 Wp (Maximum capacity utilization)
Output Specifications AC Output Pure Sine Wave at 220V AC ± 3% / 50Hz
Waveform Quality Safe for sensitive electronic appliances
Input Specifications DC Input Voltage 24V DC (supports single battery)
Operating Voltage Wide Operating Range 90V – 290V (Powerful charging even at low 90V)
Operating Modes User Settable Modes 3 Modes: Solar, Solar+Grid, Grid+Solar
Display LCD Display Shows daily solar generation & system data
Safety & Protections Protection Features Short-circuit protection,
Over temperature protection,
Overload protection,
No-load shutdown
Certification & Warranty Compliance BIS Certified (IS/IEC Standards)
24-Month Warranty

How Much Power Does a 3kW Solar Plant Generate Per Month and Year in India?

3kW solar plant generation in India is one of the most preferred system sizes for Indian homes, especially for 2–3 BHK households. In 2025, with improved panel efficiency and strong government incentives under the PM Surya Ghar Muft Bijli Yojana, homeowners are increasingly choosing 3kW systems to reduce electricity bills and achieve long-term savings.

On average, a 3kW solar plant generates 350–450 units (kWh) per month and around 4,200–5,400 units annually across India. This output can offset 80–100% of a typical household’s electricity consumption, leading to monthly savings of ₹2,100–₹3,600 at ₹6–₹8 per unit.

This guide explains how much power a 3kW solar plant actually generates, what affects its performance, real-world examples, and how you can maximize output.

1. How Much Power Does a 3kW Solar Plant Generate?

3kW solar plant generation in India:

  • Monthly: 350–450 units.
  • Yearly: 4,200–5,400 units.

This varies depending on sunlight (PSH), location, panel efficiency, shading, and maintenance.

Ideal Locations & Expected Output

The total output depends on several major factors:

a) Peak Sun Hours (PSH)

India receives 4 to 5.5 sun hours daily.

  • Rajasthan: 5.2 PSH
  • Maharashtra: 4.8 PSH
  • Kerala: 3.8 PSH

Higher PSH = more electricity generated.

b) Panel Efficiency

Modern monocrystalline or TOPCon panels offer 18–22% efficiency, increasing total output by 10–15%.

c) System Derating

Overall system efficiency reduces due to inverter losses, wiring, dust, and temperature.

Typical derating: 80–90% efficiency.

d) Roof Direction & Angle

Best direction: South-facing

Best tilt: 10–15°

Proper alignment can boost performance by 10–12%.

e) Seasonal Variations

  • Summer: Highest output (130–150 units/month)
  • Monsoon: Lowest output (80–110 units/month)
  • Winter: Medium output (100–130 units/month)


3. Monthly & Yearly Breakdown of a 3kW Solar Plant

Calculation Formula:

Annual kWh = Capacity (kW) × PSH × 365 × System Efficiency

Example:

3 × 4.5 × 365 × 0.85 = 4,188 units/year

Month-wise Output Table


4. Real-World Examples from Indian Cities

Nagpur

A 3kW plant generates 4,350 units/year, saving ₹26,000 annually.

Delhi NCR

Homeowners report 400+ monthly units, covering AC, refrigerator, and lighting loads.

Gujarat Industrial Sites

3kW systems generate 450+ units/month, achieving near-zero electricity bills through net metering.

After Subsidy Cost

With ₹78,000 central subsidy, a 3kW on-grid plant costs:

₹1.7–2.0 lakh (net cost)

With a 4–5 year payback period, this is one of India’s best financial returns.

5. Why Install a 3kW Solar Plant Now?

  • Eligible for central subsidy under PM Surya Ghar Muft Bijli Yojana.
  • Saves ₹24,000–₹40,000 per year.
  • Recovers cost in 4–5 years.
  • 25-year panel life ensures long-term benefits.
  • Ideal for 2–3 BHK homes
